Dyness PowerBrick Plus 16.08 kWh Residential Energy Storage System
A 16.08 kWh low-voltage household energy storage battery using 314 Ah cells, with IP65 protection and support for up to 50 parallel units.
€{{shopModel.rebate>0?shopModel.discountPriceStr:shopModel.formattedAmount}}
€ {{shopModel.formattedAmount}}
Like
{{item.name}}
Quantity：
Frequently Asked Questions
How can I contact customer service?
Do you ship overseas?
How long will it take to get my order?
Specifications
{{item.name}}
{{item.value}}

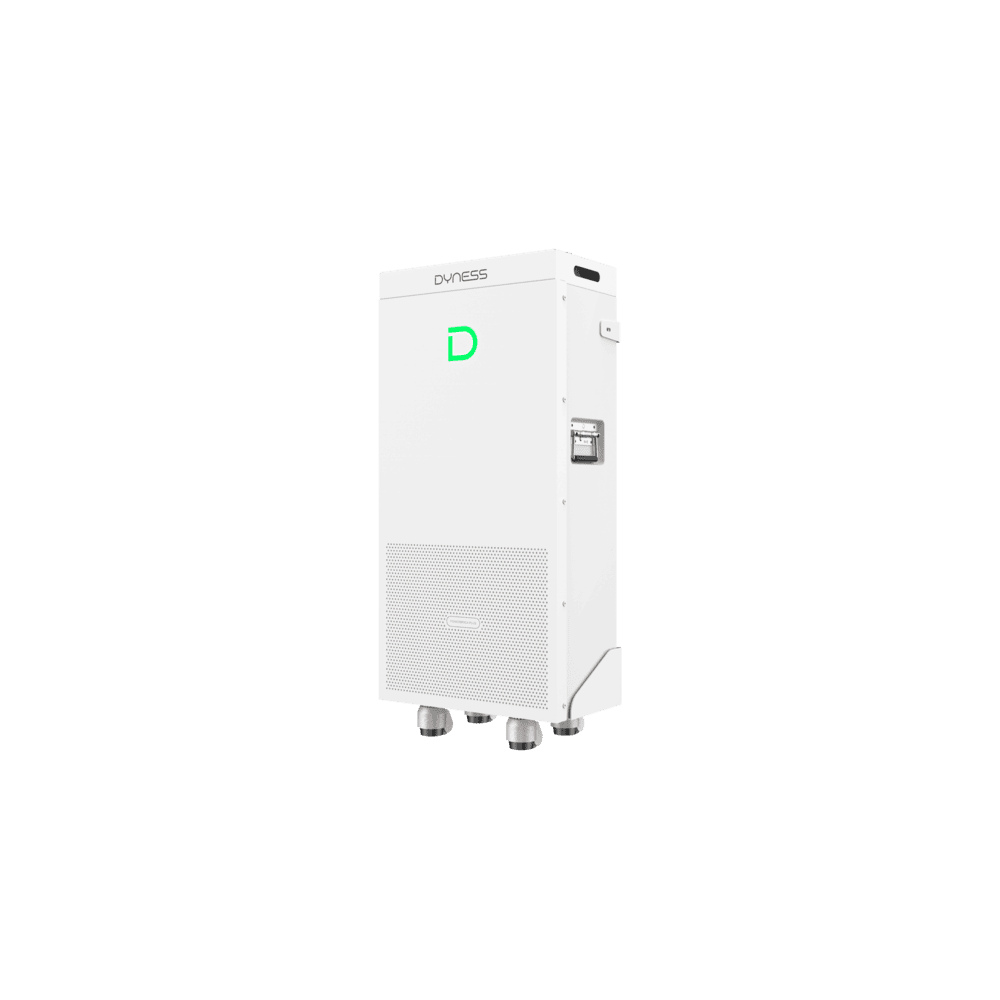

Dyness PowerBrick Plus — Powerful, Safe and Flexible Home Energy Storage
The Dyness PowerBrick Plus is a high-capacity low-voltage LiFePO4 battery designed for residential energy storage. Each unit provides 16.08kWh nominal energy and 15.28kWh usable energy, while supporting expansion up to 50 units in parallel for a total capacity of 803.8kWh.
Key Benefits
- 314Ah LiFePO4 cells with at least 8,000 cycles
- 200A maximum charge and discharge current, up to 10.24kW
- Built-in aerosol fire extinguisher for enhanced safety
- IP65 protection for indoor and outdoor installation
- Optional self-heating for operation down to -20°C
- Flexible floor-mounted or wall-mounted installation
- CAN/RS485 communication with WiFi and app monitoring
- Compatible with leading inverter brands including SMA, Victron Energy, Ingeteam, Solis, GoodWe, Growatt, Solplanet, Luxpower, Deye and Sungrow
- 10-year warranty
Technical Specifications
| Model | PowerBrick Plus |
| Battery Type | LiFePO4 (LFP) |
| Nominal / Usable Energy | 16.08kWh / 15.28kWh |
| Capacity / Voltage | 314Ah / 51.2V |
| Operating Voltage | 44.8–57.6V |
| Recommended Current | 140A (0.45C) |
| Maximum Current | 200A (0.64C) |
| Maximum Power | 10.24kW |
| Depth of Discharge | 95% |
| Dimensions (W × D × H) | 435 × 235 × 850mm |
| Net Weight | 117kg |
| Protection Rating | IP65 |
| Communication | CAN / RS485 |
| Cycle Life | ≥8,000 cycles |
| Expansion | Up to 50 units in parallel |
| Certification / Standards | UN38.3 / IEC 62619 |
Official Documents
Download Dyness PowerBrick Plus Datasheet
Download Dyness EU Declaration of Conformity
